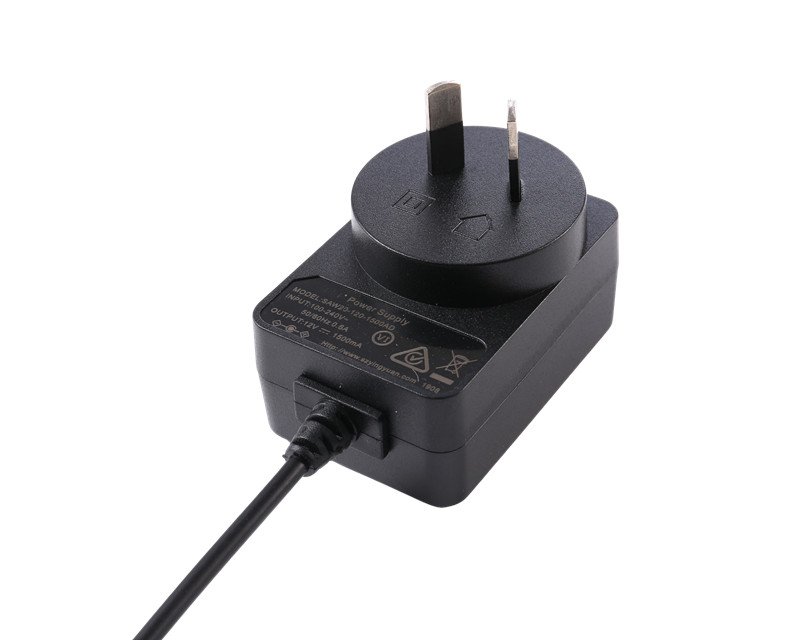

AiecoPower 20W 5V 3A 9V 2A 12V 1.5A 1.67A 24V 0.8A AU Plug Switching Power Supply
AiecoPower 20W 5V 3A 9V 2A 12V 1.5A 1.67A 24V 0.8A AU Plug Switching Power Supply – Bild 2
AiecoPower 20W 5V 3A 9V 2A 12V 1.5A 1.67A 24V 0.8A AU Plug Switching Power Supply – Bild 3

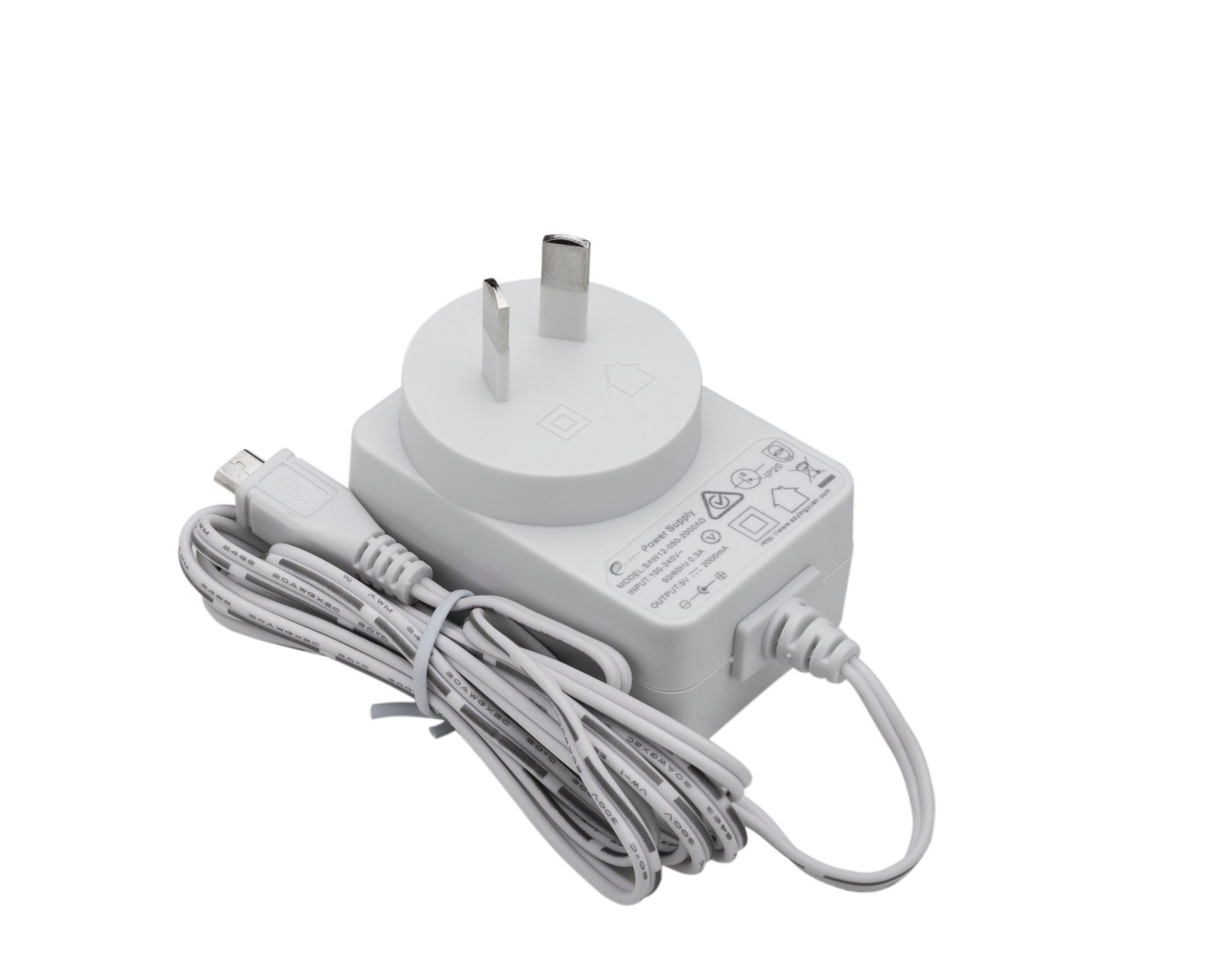

20W Wall Mounted Au Power Adapter White
,

AiecoPower 20W 5V 3A 9V 2A 12V 1.5A 1.67A 24V 0.8A AU Plug Switching Power Supply

The SAW20 Series offers reliable 20W Switching Power Supply, engineered for optimal stability and high efficiency.

This adapter is globally certified and meets stringent energy requirements, including the critical DoE Level VI efficiency standards. Comprehensive protection features are integrated, including Over-Current (OCP), Over-Voltage (OVP), Overload, and Short-Circuit Protection.

Built with top-tier materials and strict manufacturing protocols, the SAW20 ensures superior electronic stability and a secure charging experience for end-users. It is an ideal power solution for a diverse range of devices, including small household appliances, IoT devices, electronic pianos, air purifiers, water purifiers, and essential medical equipment like breast pumps.

Kategorien: ,

Specification



  • Model Number: SAW20-xxx-yyyyzF
  • Universal AC Input: Wide voltage range (90V to 264V AC) ensures global application flexibility.
  • Leading Energy Compliance: Fully compliant with DoE Level VI energy efficiency standards.
  • Quality Assurance: Reliability verified through rigorous Drop-In Tested and 100% Burn-In Tested procedures.
  • Ultra-Compact Size: Space-saving dimensions of 45.5 x 40.9 x 22.9mm.
  • Worldwide Approvals: Holds major safety certifications including cUL, FCC, CE, GS, PSE, KC, CCC, and many others.

Specification Details

Power Supply ModelSAW20
input voltage&Frequency100-240VAC, 50/60Hz, 0.3A
Output Powermax. 20W
Full Load EfficiencyDOE VI,ERP VI etc
Burn-in Test80% to 100% load, 40 C°± 5℃ for 4 hours
Hi-Pot TestPrimary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec.
Operating temperature0 to 40℃
Length of DC cordOptional (1.2m 1.5m 1.83m etc)
DC plugOptional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc)
Product Dimensions (mm)59x40.9x26.4
Ripple & Noise120Vp-p Max
PackageWhite box or Plastic Bag with outer carton
No load Power Consumption< 0.075W
Protection functionShort-circuit/OVP/OCP etc
Safety CertificateEN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC
EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310
Warranty3 years

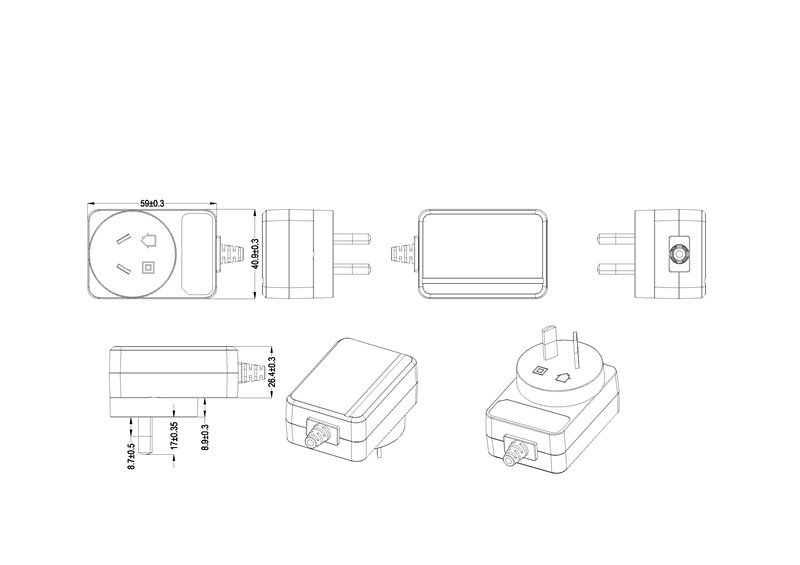

Drawing:



Typical Output

I/P Voltage Typical ModelOutput VoltageOutput CurrentRipple& NosieEffiviency Level
100-240V/50-60HzSAW20-050-30005V3000mA100mVVI
SAW20-090-20009V2000mA100mVVI
SAW20-120-150012V1500mA100mVVI
SAW20-150-120015V1200mA100mVVI
SAW20-240-080024V800mA100mVVI
