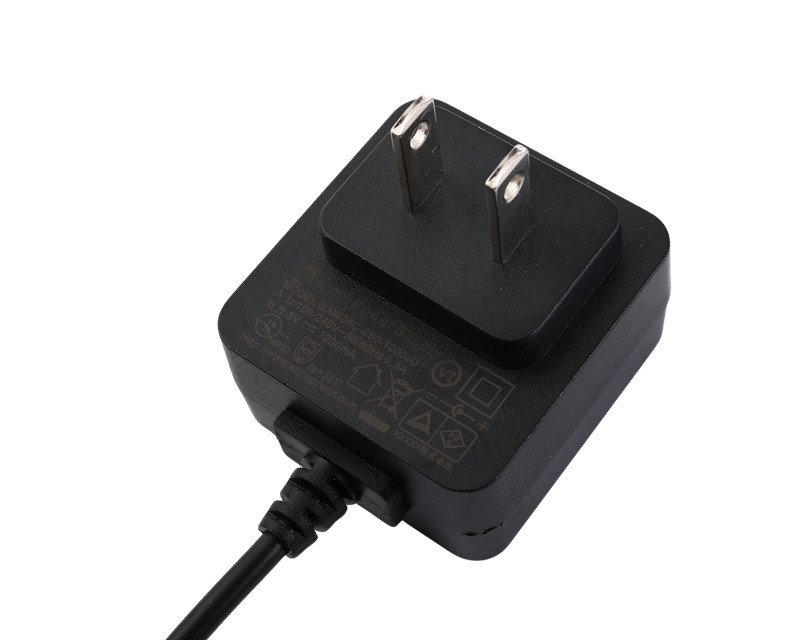

6W power adapter USA verison_black color
6W US Plug Wall Mounted Power Adapter (5V 1.2A, 12V 0.5A) | Wholesale - AiecoPower – Bild 2
6W US Plug Wall Mounted Power Adapter (5V 1.2A, 12V 0.5A) | Wholesale - AiecoPower – Bild 3
6W US Plug Wall Mounted Power Adapter (5V 1.2A, 12V 0.5A) | Wholesale - AiecoPower – Bild 4
,

6W US Plug Wall Mounted Power Adapter (5V 1.2A, 12V 0.5A) | Wholesale – AiecoPower

The SAW06C series offers reliable 6W Wall Mounted Power Adapter  engineered for exceptional stability and efficiency.

This globally certified adapter is designed to meet stringent energy requirements, including DoE Level VI efficiency standards. Comprehensive safety is guaranteed with Over-Current Protection (OCP), Over-Voltage Protection (OVP), and Short-Circuit Protection (SCP).

Built with premium-quality components and strict production processes, the SAW06C ensures long-term reliability and a safe user experience. It is widely used for critical small electronic devices such as IoT hubs, IP cameras, and network peripherals.

Kategorien: ,

Specification



  • Model Number: SAW06C-xxx-yyyyzf
  • Environmental Standards: Fully RoHS and REACH compliant for global market access.
  • Comprehensive Protections: Built-in OCP, OVP, and Short-Circuit Protection for maximized safety.
  • Major Global Certifications: Holds essential safety approvals including cUL, FCC, CE, GS, PSE, KC, CCC, and more.
  • Ultra-Compact Size: Space-saving dimensions of 45.5 x 40.9 x 22.9mm.
  • Color Availability: Available in standard Black and White casing options.

Specification Details

Power Supply ModelSAW06C
input voltage&Frequency100-240VAC, 50/60Hz, 0.3A
Output Powermax. 6W
Full Load EfficiencyDOE VI,ERP VI etc
Burn-in Test80% to 100% load, 40 C°± 5℃ for 4 hours
Hi-Pot TestPrimary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec.
Operating temperature0 to 40℃
Length of DC cordOptional (1.2m 1.5m 1.83m etc)
DC plugOptional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc)
Product Dimensions (mm)43.5x41x23.5
Ripple & Noise120Vp-p Max
PackageWhite box or Plastic Bag with outer carton
No load Power Consumption< 0.075W
Protection functionShort-circuit/OVP/OCP etc
Safety CertificateEN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC
EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310
Warranty3 years

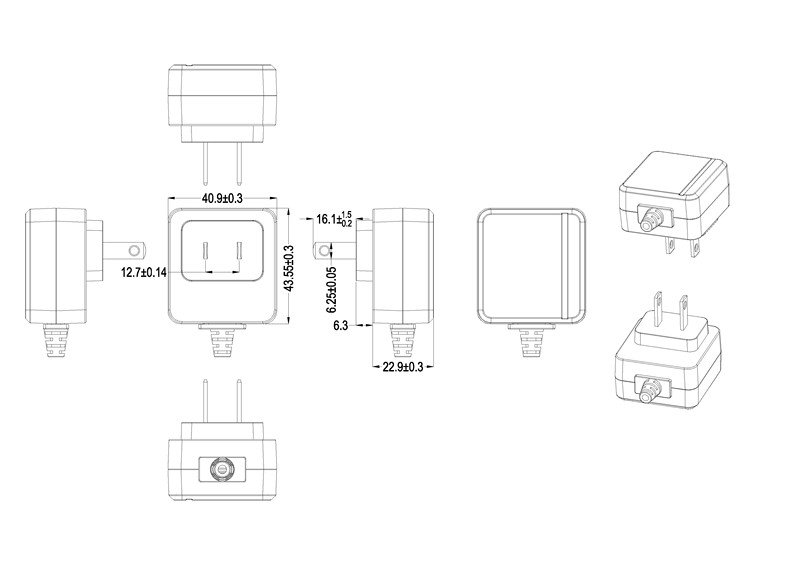

Drawing:



Typical Output

I/P Voltage Typical ModelOutput VoltageOutput CurrentRipple& NosieEffiviency Level
100-240V/50-60HzSAW06C-050-10005V1000mA100mVVI
SAW06C-050-12005V1200mA100mVVI
SAW06C-059-10005.9V1000mA100mVVI
SAW06C-120-050012V500mA100mVVI
SAW06C-120-060012V600mA100mVVI
