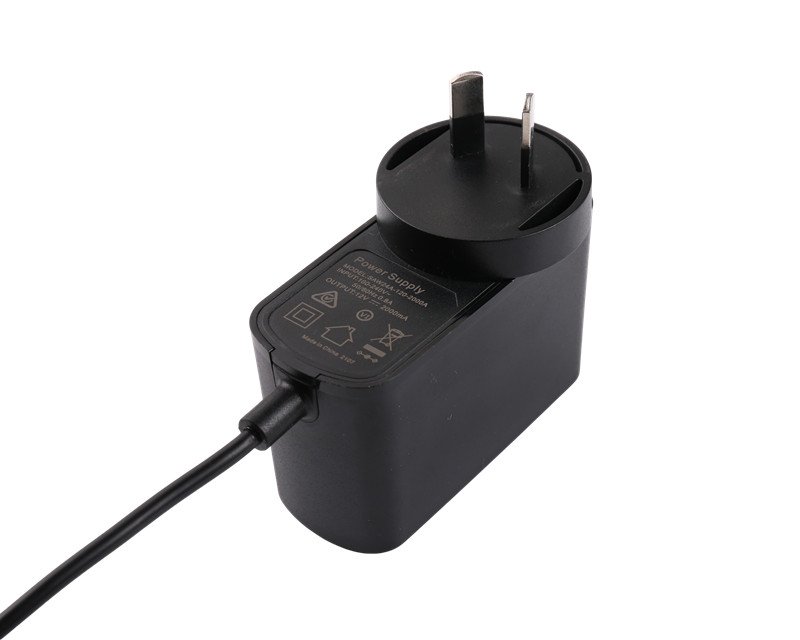

24W AU Plug Wall Mounted Power Adapter

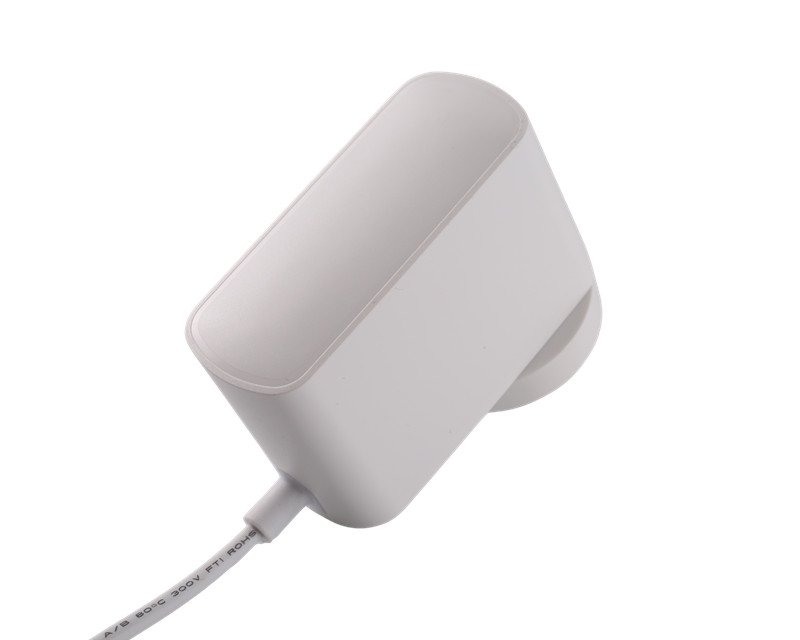

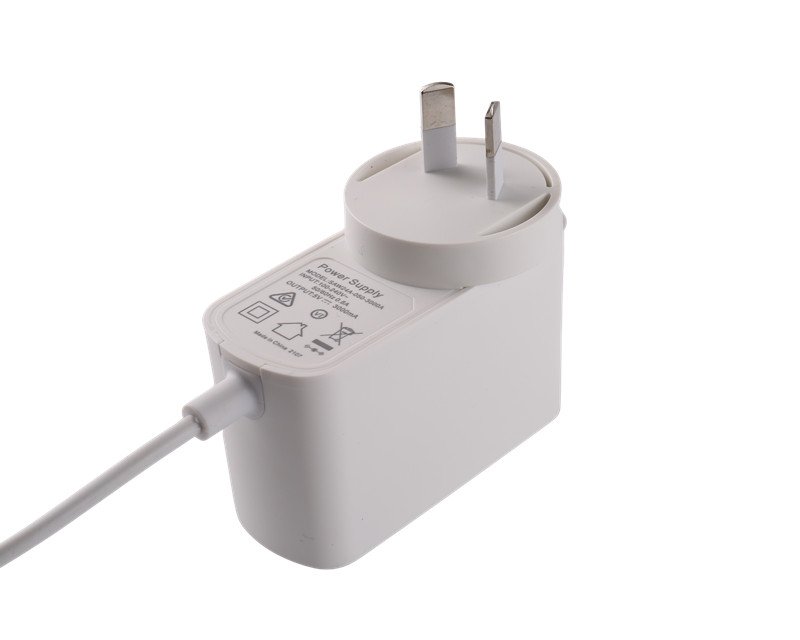

24W AU Plug Wall Mounted Power Adapter white

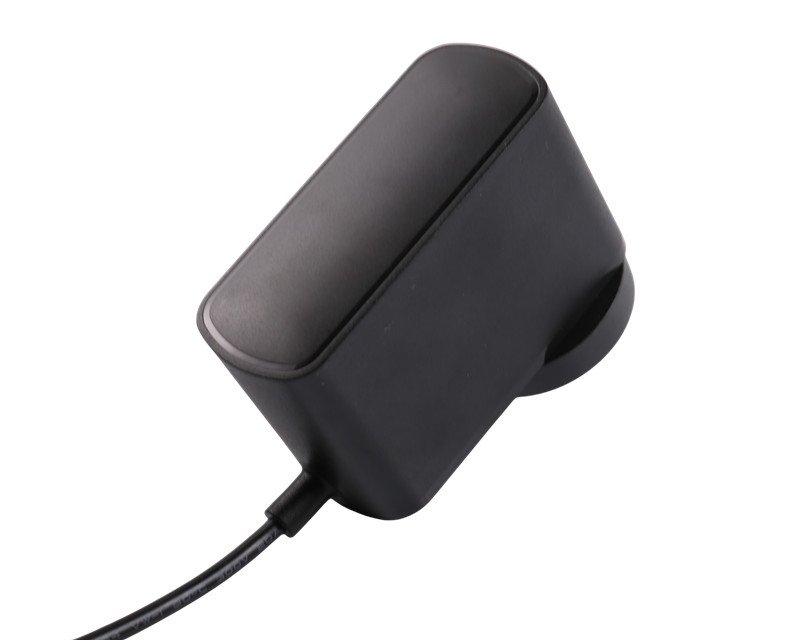

24W AU Plug Wall Mounted Power Adapter 2
24W AU Plug Wall Mounted Power Adapter white (2)
,

AiecoPower 24W 5V 3A 9V 3A 12V 2A 24V 1A Australia Plug RCM SAA Certificated External Power Adaptor

This 24W External Power Adaptor is the highly efficient, globally compliant solution for low-voltage electronics. Designed to accept a Universal Input Voltage of 100-240V AC, the adapter is ready for any market and meets stringent DoE Level VI efficiency standards, ensuring reliable, long-term performance.

Safety is paramount: This unit is certified safe byRCM and SAA, featuring integrated protection protocols. These include Short-Circuit Protection (SCP), Over-Current Protection (OCP), and Over-Voltage Protection (OVP), safeguarding both the power supply and your connected devices.

The standard 5.5mm x 2.1mm DC connector and 1.5-meter cable ensure compatibility with diverse applications. It is ideal for powering 24V LED light strips, routers, CCTV/security surveillance cameras, and electronic piano keyboards. Choose this adapter for superior safety and stability.

Categorías: ,

Specification



  • Model Number: SAW24A (30W Output)
  • Universal AC Input: Wide voltage range (90V to 264V AC) ensures global application flexibility.
  • Leading Energy Compliance: Fully compliant with DoE Level VI energy efficiency standards.
  • Quality Assurance: Reliability verified through rigorous Drop-In Tested and 100% Burn-In Tested procedures.
  • Ultra-Compact Size: Space-saving dimensions of 72.5 44.6 x 31mm.
  • Aesthetic Options: Available in both Black and White casing options.

Specification Details

Power Supply ModelSAW24A
input voltage&Frequency100-240VAC, 50/60Hz, 0.8A
Output Powermax. 24W
Full Load EfficiencyDOE VI,ERP VI etc
Burn-in Test80% to 100% load, 40 C°± 5℃ for 4 hours
Hi-Pot TestPrimary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec.
Operating temperature0 to 40℃
Length of DC cordOptional (1.2m 1.5m 1.83m etc)
DC plugOptional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc)
Product Dimensions (mm)72.5x44.6x31.3
Ripple & Noise120Vp-p Max
PackageWhite box or Plastic Bag with outer carton
No load Power Consumption< 0.075W
Protection functionShort-circuit/OVP/OCP etc
Safety CertificateEN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC
EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310
Warranty3 years

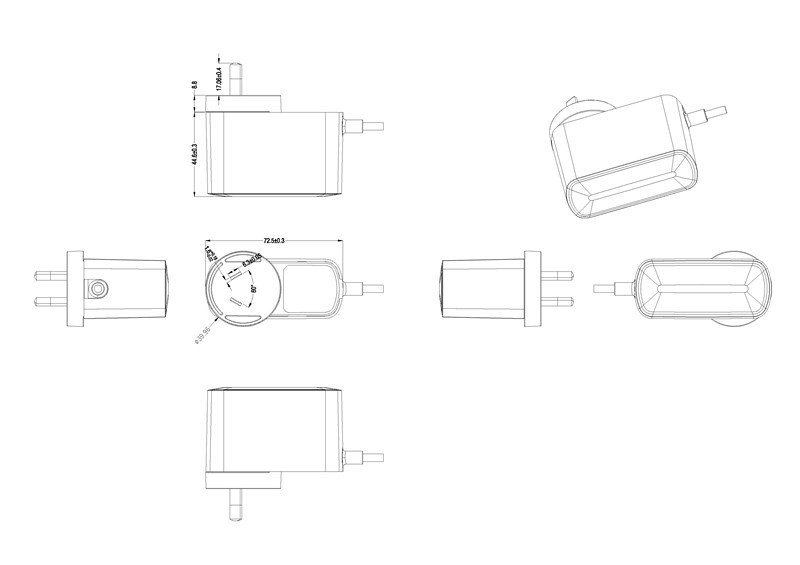

Drawing:

24W vertical shape power adapter AU version_drawing



Typical Output

I/P Voltage Typical ModelOutput VoltageOutput CurrentRipple& NosieEffiviency Level
100-240V/50-60HzSAW24A-050-50005V5000mA100mVVI
SAW24A-090-30009V3000mA100mVVI
SAW24A-120-200012V2000mA100mVVI
SAW24A-150-150015V1500mA100mVVI
SAW24A-240-100024V1000mA100mVVI
