AiecoPower 48W Series 5V 5A 9V 4A 12V 4A 24V 2A EU Plugtop External AC Power Adapter

This 48W EU Plugtop External AC Power Adapter is an optimized, high-performance power supply engineered for superior stability and long operational lifespan. Featuring a Universal AC Input of 100-240V and powerful 36W output, this adapter operates with High Efficiency and adheres to strict DoE Level VI energy standards. Its robust design ensures low heat generation and minimal electronic noise during continuous operation.

Safety and compliance are guaranteed: The unit holds essential UL FCC CE GS PSE KC RCM Safety Certificates , ensuring market readiness. Integrated safeguards provide superior protection, including Short Circuit Protection (SCP), Over-Current Protection (OCP), Over-Voltage Protection (OVP), and automatic thermal cut-off, securing both the power supply and the connected device.

This versatile 48W power supply is ideal for 12V DC devices requiring up to 4.0A (suitable for all loads from 0.5A up to 4A). Applications include CCTV Cameras, Digital Video Recorders (DVR), LED light Strips, Routers, Monitors, Amplifiers, Docking Stations, and Arduino Projects. Contact us today for technical specifications and bulk pricing.

Categorías: ,

Specification



  • Premium-Grade Components & Stable Circuitry: Built with high-quality, reliable components for superior electronic stability and performance.
  • 100% Pure Copper Power Cord: Features a pure copper power cord for enhanced conductivity and minimal heat dissipation.
  • Silent Operation & Low Thermal Signature: Engineered for Low EMI and silent operation, even when delivering Full 48W Load.
  • Automatic Overload Protection (OLP): Features OLP (Overload Protection) with automatic cut-off to prevent system damage and ensure maximum safety.
  • Ultra-Compact Size: Space-saving dimensions of 81 x 40.5 x 32mm.
  • Guaranteed 48W Full Wattage Output: Provides consistent and reliable 48 Watt power output under sustained operating conditions.

Specification details：

Power Supply ModelSAW48C
input voltage&Frequency100-240VAC, 50/60Hz, 0.8A
Output Powermax. 48W
Full Load EfficiencyDOE VI,ERP VI etc
Burn-in Test80% to 100% load, 40 C°± 5℃ for 4 hours
Hi-Pot TestPrimary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec.
Operating temperature0 to 40℃
Length of DC cordOptional (1.2m 1.5m 1.83m etc)
DC plugOptional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc)
Product Dimensions (mm)81x40.5x32
Ripple & Noise120Vp-p Max
PackageWhite box or Plastic Bag with outer carton
No load Power Consumption< 0.075W
Protection functionShort-circuit/OVP/OCP etc
Safety CertificateEN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC
EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310
Warranty3 years

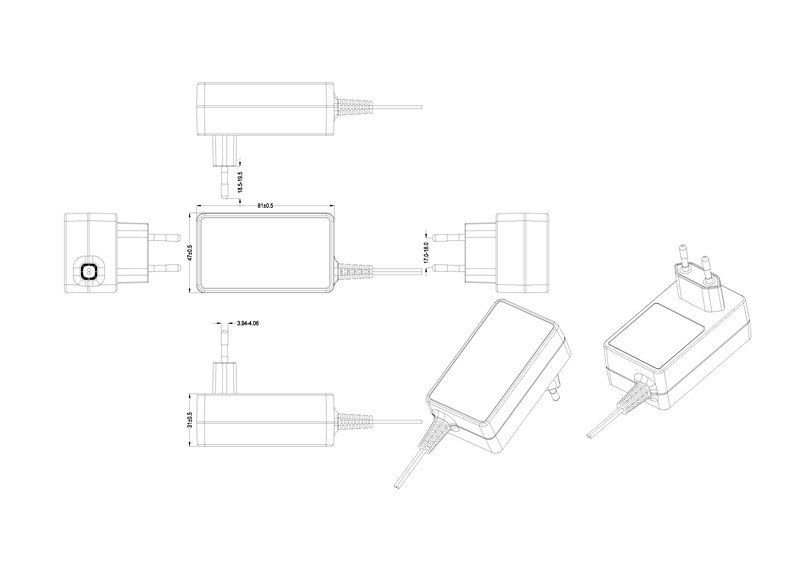

Drawing:

36W 48W Power adapter EU version_drawing



Typical Output

I/P Voltage Typical ModelOutput VoltageOutput CurrentRipple& NosieEffiviency Level
100-240V/50-60HzSAW48C-050-60005V6000mA100mVVI
SAW48C-090-50009V5000mA100mVVI
SAW48C-120-400012V4000mA100mVVI
SAW48C-150-300015V3000mA100mVVI
SAW48C-240-200024V2000mA100mVVI
