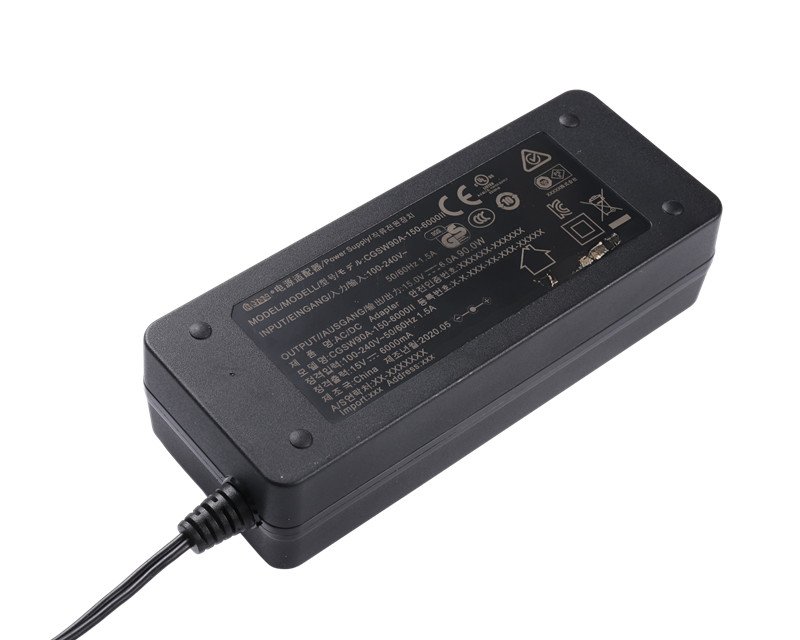

AiecoPower 96W 24V 4Amp C14 Connector Desktop Power Adapter

The AiecoPower 96W Desktop Power Supply is a high-efficiency AC-to-DC adapter delivering a stable 24V 4A output. Featuring a professional C14 inlet and universal 100V-240V input, it provides a reliable, high-current power solution for professional electronics, industrial equipment, and high-demand hardware worldwide.

Built for maximum reliability, this 24V power adapter includes comprehensive safety protections against over-voltage, short circuits, and overheating. Its flicker-free technology ensures zero voltage fluctuations, protecting your sensitive devices from electrical damage and preventing sparks or noise for a silent, cool-running operation.

This versatile 96W power supply is ideal for LED strips, CCTV systems, 3D printers, and LCD monitors. Equipped with a secure 5.5mm x 2.5mm DC connector and high-quality power cords, it ensures a dependable, long-term energy source for both demanding home and commercial development projects.

Catégories : Desktop Power Adapter, 96W Series

Description
Avis (0)

Specification

High-Performance 96W 24V 4A Desktop Power Supply:Delivers a powerful 96W max output with universal 100V-240V input. The standard 5.5mm x 2.5mm DC jack ensures efficient, stable power for high-demand electronics requiring consistent 24V 4A current.
Advanced Multi-Level Safety Protections and Reliability: Equipped with built-in safeguards against over-voltage, short circuits, and overheating. This TUV-style design ensures quiet, cool operation, protecting your expensive hardware from electrical damage, sparks, or potential thermal risks.
Stable Voltage Output with Zero Flicker Technology: Experience consistent voltage with no fluctuations during power transitions. This flicker-free technology prevents electronic component destruction, ensuring a spark-free connection and smooth, reliable performance for all sensitive professional equipment.

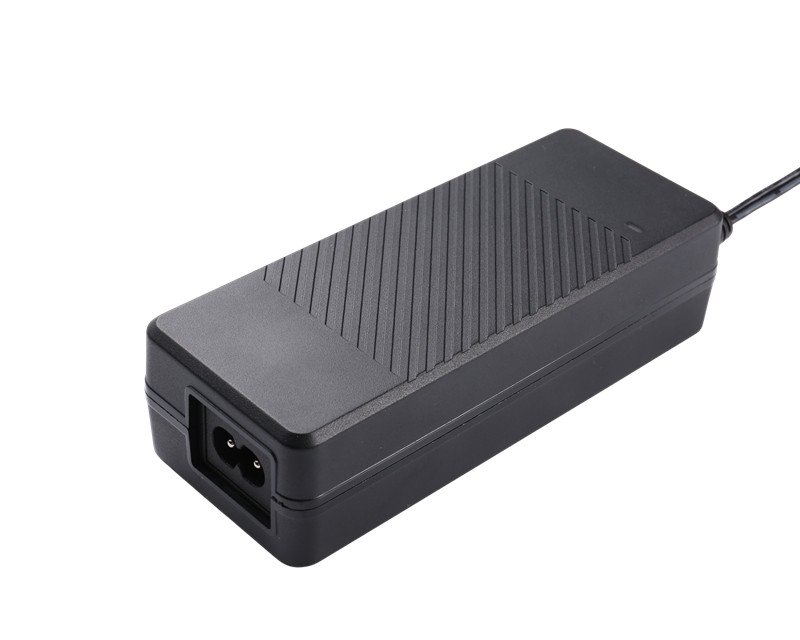

Versatile C14 Adapter for Industrial and Home Use: Featuring a professional 3-prong C14 inlet, this adapter is ideal for LED strips, CCTV systems, 3D printers, and LCD monitors. Its secure, tight-fitting power cord prevents accidental disconnections.

Specification details：

Power Supply Model	CGSW90A
input voltage&Frequency	100-240VAC, 50/60Hz, 1.5A
Output Power	max. 96W
Full Load Efficiency	DOE VI,ERP VI etc
Burn-in Test	80% to 100% load, 40 C°± 5℃ for 4 hours
Hi-Pot Test	Primary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec.
Operating temperature	0 to 40℃
Length of DC cord	Optional (1.2m 1.5m 1.83m etc)
DC plug	Optional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc)
Product Dimensions (mm)	133.4x95x53
Ripple & Noise	120Vp-p Max
Package	White box or Plastic Bag with outer carton
No load Power Consumption	< 0.075W
Protection function	Short-circuit/OVP/OCP etc
Safety Certificate	EN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC
	EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310
Warranty	3 years

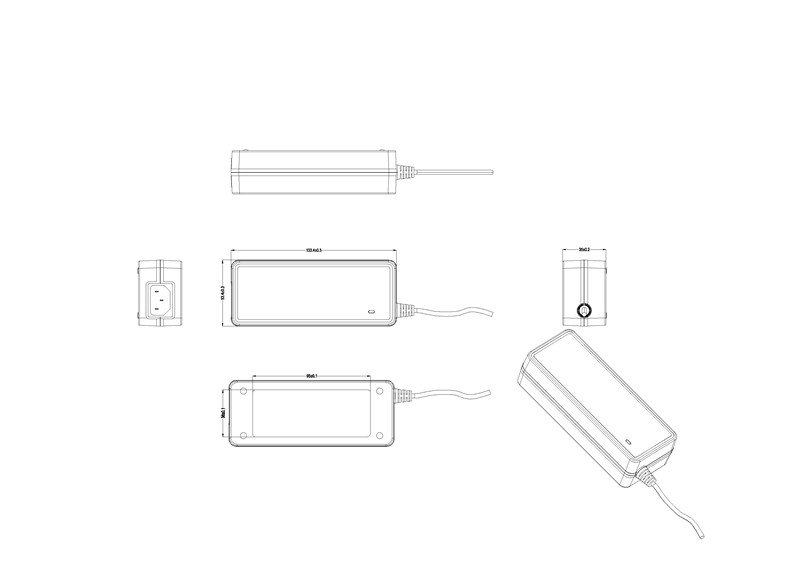

Drawing:

Typical Output

I/P Voltage	Typical Model	Output Voltage	Output Current	Ripple& Nosie	Effiviency Level
100-240V/50-60Hz	CGSW90A-120-7500I	12V	7500mA	200mV	VI
	CGSW90A-150-6000I	15V	6000mA	200mV	VI
	CGSW90A-240-3750I	24V	3750mA	200mV	VI
	CGSW90A-240-4000I	24V	4000mA	200mV	VI
	CGSW90A-480-2000I	48V	2000mA	200mV	VI
