900W Battery Chargers with cooling fan (7)
AiecoPower 900W 36V 48V 20Amp Lithium Battery Charger AC-DC LiFePO4 Lithium Battery Charger – Bild 2
AiecoPower 900W 36V 48V 20Amp Lithium Battery Charger AC-DC LiFePO4 Lithium Battery Charger – Bild 3
AiecoPower 900W 36V 48V 20Amp Lithium Battery Charger AC-DC LiFePO4 Lithium Battery Charger – Bild 4
,

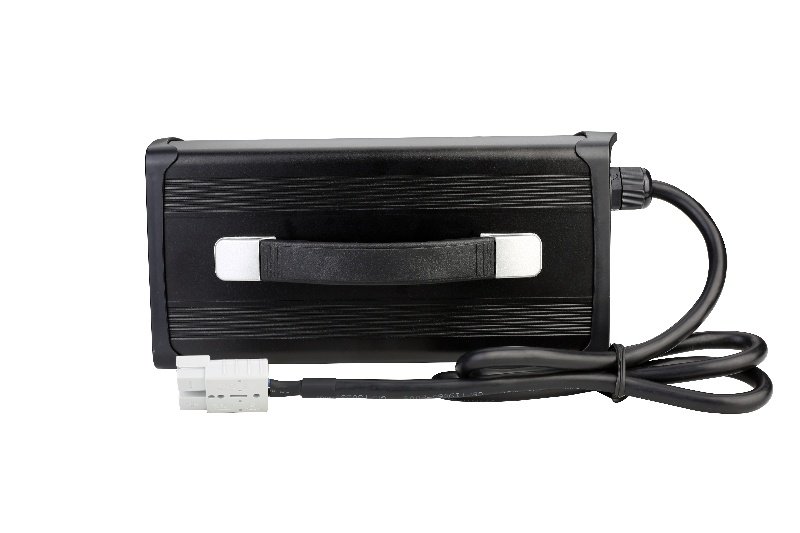

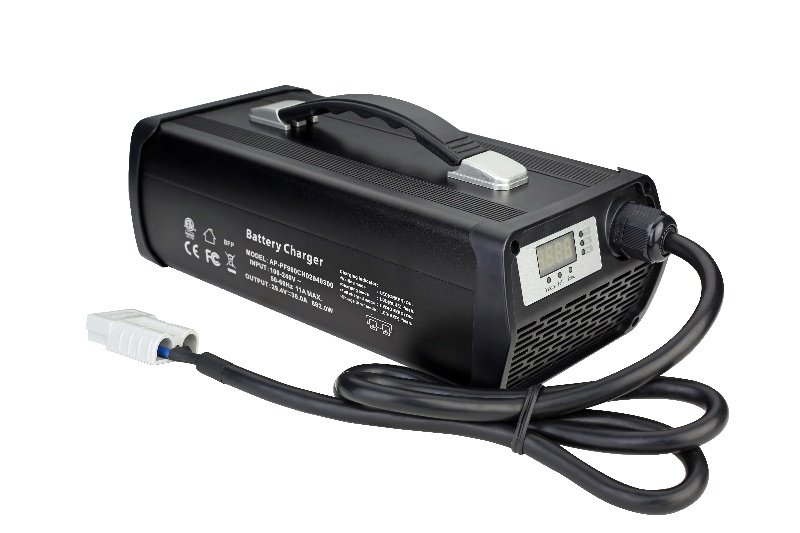

AiecoPower 900W 36V 48V 20Amp Lithium Battery Charger AC-DC LiFePO4 Lithium Battery Charger

1. High-Efficiency Industrial Power

This 36V 20A Forklift Battery Charger is designed for rapid, accurate industrial charging, delivering a constant current of 20A and voltage of 36V/(44.1V). Operating with dual 110V/220V AC input, its conversion efficiency exceeds 90%, significantly enhancing energy savings and operational speed. Optional Anderson output connectors (50A/120A) are available.

2. Intelligent 3-Stage Safety

Utilizing advanced 3-Stage Smart Charging technology, this unit ensures a “plug and forget” process without risking battery damage. Intelligent protection includes safeguards against overcurrent, overvoltage, short circuit, and reverse polarity, guaranteeing safe and reliable operation in demanding environments.

3. Clear Monitoring & Wide Application

A High-Definition LCD digital display clearly shows voltage, current, and charging time in real-time. This robust charger is suitable for a wide range of lead-acid applications, including Electric Forklifts, Golf Carts, RVs, and Industrial Electric Vehicles.

Kategorien: ,

Specification



  • 36V 20A Rapid Output:Delivers constant 20A current at 36V/(44.1V) for fast, accurate charging of industrial batteries.
  • High Conversion Efficiency: Efficiency exceeds 90% (110V/220V AC input), saving energy compared to traditional models.
  • Intelligent 3-Stage Safety: Features 3-Stage Smart Charging and protection against short circuit, overvoltage, and reverse polarity.
  • Real-Time LCD Monitoring: LCD display clearly shows voltage, current, and charging time for precise status checks.
  • Industrial Application Ready: Features 0V activation to restore deeply discharged cells and safely wake up BMS-protected batteries..

Specification details：

Battery Charger ModelAP-FN900AD
input voltage&Frequency100-240VAC, 47/63Hz, 10A
Class typeClass I
HousingPlastic
Power Factor0.95
Output Voltage12-90Vdc
Output Current0.1-55.0A
Output PowerMax. 900W
Full Load Efficiency>92% Input 230Vac@ Full load
LED IndicatorsLED1: Red---Power on; LED2: Red---Charging, Green---fully charged
Operating temperature-20 to 40℃
Storage temperature-40 to 85℃
No load Power Consumption< 0.075W
Product Dimensions (mm)223*123.5*69
Net Weight2850g
CoolingFan Cooling
Protection functionOCP，OVP,Short Circuit Protection, Reverse Polarity Protection, Anti-revert current Protection, Anti-spark Protection etc
Safety StandardEN 60335-2-29:2004 + A2:2010+A11:2018；    EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017;  UL 1012:2010 Ed.8； AS/NZS 4417.2:2018
CertificationETL, CE,PSE,RCM,SAA, CQC etc
Warranty2 years

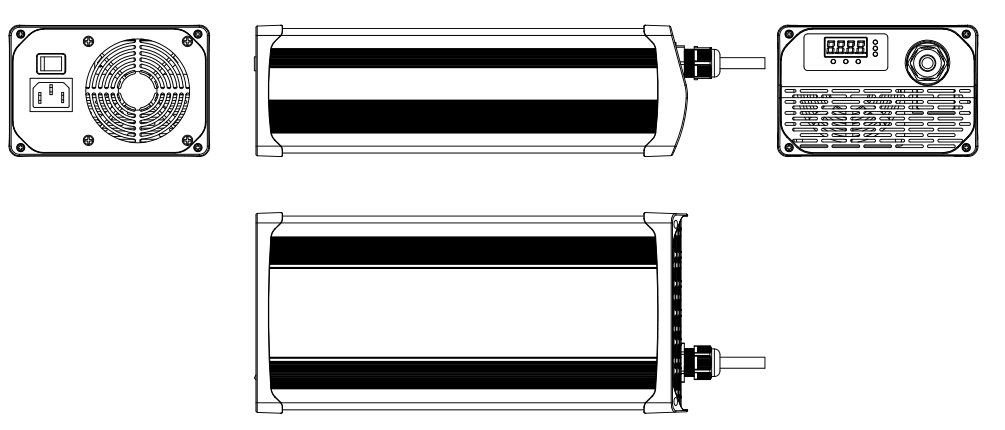

Drawing:

900W Battery Charger drawing



Typical Output

Battery TypeTypical Model
LiFePO4 Battery 14.6V 55A29.2V 30A43.8V 20A58.4V 15A73V 12A87.6V 10A
Ternary Lithium Battery12.6V 55A29.4V 30A42V 20A54.6V 15A71.4V 12A84V 10A
Lead-acid Battery 12V 55A24V 30A 36V 20A48V 15A60V 12A72V 10A
