29.2V 20A Battery Chargers
600W Battery Charger with Cooling fan (1)
AiecoPower 600W 29.2V 20 Amp Lithium Battery Charger AC-DC LiFePO4 Lithium Battery Charger – Bild 3
AiecoPower 600W 29.2V 20 Amp Lithium Battery Charger AC-DC LiFePO4 Lithium Battery Charger – Bild 4
,

AiecoPower 600W 29.2V 20 Amp Lithium Battery Charger AC-DC LiFePO4 Lithium Battery Charger

1. Smart 20A LiFePO4 Charging

The AiecoPower 29.2V 20A Lithium Battery Charger is engineered for 29.2V (29.4V) LiFePO4 batteries. This stable 20A output charger supports 0V activation to safely revive BMS-protected batteries. It uses fully automatic CC/CV and Float/Cut-off modes for optimal longevity.

2. Certified Safety & Efficient Cooling

Safety and compliance are guaranteed by FCC, CE, RoHS, and PSE certifications. Multilevel protection shields against over-temp, reverse polarity, and short-circuit faults. An integrated cooling fan ensures stable charging efficiency even in extreme conditions.

3.  Built for RV & Outdoor Ready

This 29.2V 20A charger is purpose-built for outdoor lifestyles, making it an ideal solution for RVs, trucks, cars, and solar systems. AiecoPower backs this durable unit with a 2-year quality warranty. (Note: Not suitable for marine environments.)

Kategorien: ,

Specification



  • 20A High-Speed Charging: Delivers 20 amps (600W) for rapid charging of 12V LiFePO4 batteries in RV and solar systems.
  • Full Automatic Stage Control: Provides automatic transition through CC, CV, and Float/Cut-off charging stages for optimal battery health.
  • Multi-Level Safety Protection: Robust safeguards prevent over-temp, short-circuit, over-current, low-voltage, and reverse polarity issues.
  • Durable & Globally Compliant: Features aluminum alloy housing with cooling fan; tested for FCC, CE, and RoHS standards.
  • 0V BMS Activation: Features 0V activation to restore deeply discharged cells and safely wake up BMS-protected batteries..

Specification details：

Battery Charger ModelAP-FN600AD
input voltage&Frequency100-240VAC, 47/63Hz, 5A
Class typeClass I
HousingPlastic
Power Factor0.95
Output Voltage12-90Vdc
Output Current0.1-25.0A
Output PowerMax. 600W
Full Load Efficiency>92% Input 230Vac@ Full load
LED IndicatorsLED1: Red---Power on; LED2: Red---Charging, Green---fully charged
Operating temperature-20 to 40℃
Storage temperature-40 to 85℃
No load Power Consumption< 0.075W
Waterproof RatingIP65
Product Dimensions (mm)223*123.5*69
Net Weight2850g
CoolingNatural Cooling
Protection functionOCP，OVP,Short Circuit Protection, Reverse Polarity Protection, Anti-revert current Protection, Anti-spark Protection etc
Safety StandardEN 60335-2-29:2004 + A2:2010+A11:2018；   EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017;  UL 1012:2010 Ed.8； AS/NZS 4417.2:2018
CertificationETL, CE,PSE,RCM,SAA, CQC etc
Warranty2 years

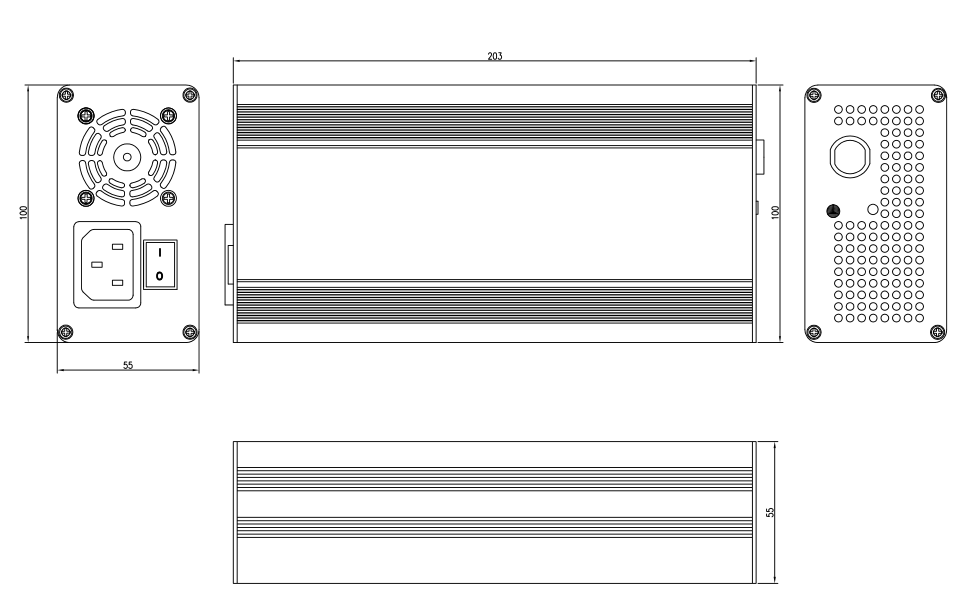

Drawing:

29.2V 20A Battery Chargers Drawing



Typical Output

Battery TypeTypical Model
LiFePO4 Battery 14.6V 25A29.2V 20A43.8V 13A58.4V 10A73V 8A87.6V 7A
Ternary Lithium Battery12.6V 25A29.4V 20A42V 13A54.6V 20A71.4V 8A84V 7A
Lead-acid Battery 12V 25A24V 20A 36V 13A48V 10A60V 8A72V 7A
