Custom Open-Frame Power Supplies: The Hidden Engine Behind Modern Robot Vacuum Base Stations

The global smart home cleaning industry is undergoing a massive transformation. Modern robotic vacuums have evolved far beyond basic puck-shaped devices returning to simple charging pads. Today’s market-leading models feature all-in-one multi-functional base stations that automatically empty dustbins using high-power suction, wash and hot-air dry mop pads, heat water for deep stain removal, and fast-charge high-capacity lithium battery packs.

Behind every high-performance automated feature lies a critical engineering component: the custom-built open-frame AC-DC power supply.

At AiecoPower, we specialize in OEM/ODM power electronics manufacturing, helping smart home appliance brands design and produce high-density, reliable open-frame power boards tailored to the precise mechanical and electrical requirements of modern robotic base stations.

1. The Industry Shift to Built-In Open-Frame Power Supplies

In the early days of robotic vacuums, external wall-plug adapters or “power bricks” were the industry norm. However, the rapid shift toward multi-functional cleaning docks has made built-in open-frame power supplies the definitive global standard.

1.1 High Functional Integration & Multi-Rail Power Demands

A modern base station houses multiple sub-systems operating at different voltages and currents. Rather than using multiple conversion modules or bulky external bricks, an integrated open-frame AC-DC board handles multi-channel power distribution directly on a single PCBA:

• High-Current DC Fast Charging: Supplies 24V / 3A–5A+ to rapidly charge onboard lithium batteries.

• Auto-Emptying Blowers: Handles intense, temporary peak loads (often 500W to 1000W+) during dust collection.

• PTC Heating & Water Pumps: Delivers steady medium-to-high power for water extraction and thermal drying modules.

• Control MCUs & Sensor Arrays: Provides ultra-clean, low-noise low-voltage rails (12V, 5V, 3.3V) for Wi-Fi, sensors, and logic controllers.

1.2 Space Optimization for Complex Enclosure Geometries

Base stations are engineered around ergonomics, clean-water/dirty-water tanks, and sleek interior design. The remaining internal volume for power electronics is often narrow, L-shaped, or irregular. Removing outer plastic casings allows open-frame boards to be custom-shaped to fit tightly into structural voids, maximizing usable internal space.

1.3 Superior Thermal Management via Direct Airflow

Sealed external power adapters trap heat inside their housings, reducing component lifespan. Built-in open-frame power supplies leverage internal air channels and dedicated vertical aluminum heatsinks, ensuring lower operating temperatures even during heavy-duty heating or vacuuming cycles.

2.Hardware Design Deep-Dive: Inside a Custom AiecoPower Power Board

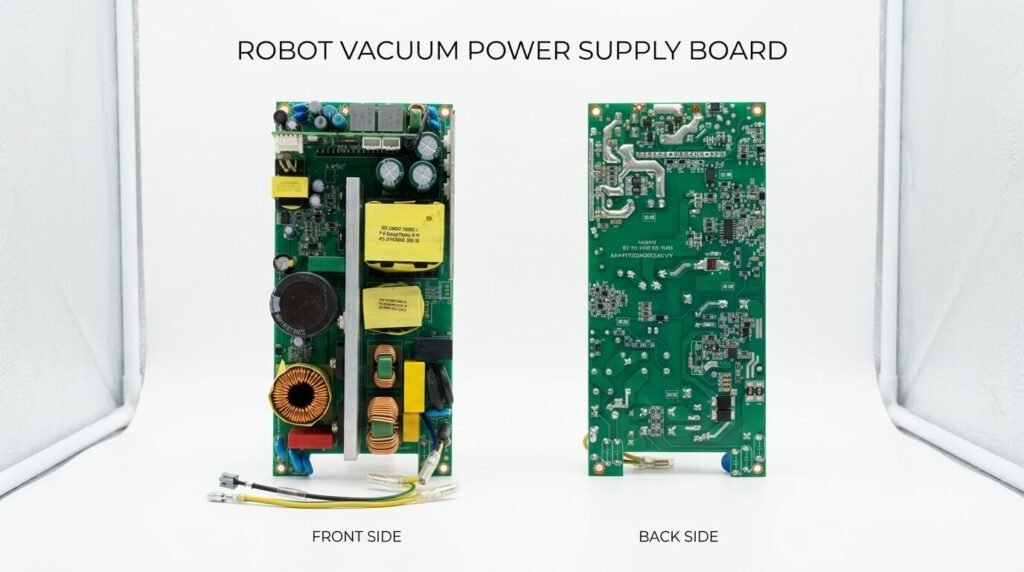

Examining a production-grade open-frame power board engineered by AiecoPower illustrates the meticulous design standards required for commercial-grade smart cleaning appliances.

2.1 Heavy-Duty Input EMI/EMC Filtering

The AC input section incorporates a full filter network—including dual common-mode chokes, safety X/Y capacitors, and sleeved fuses. This robust front-end design suppresses conducted and radiated interference, ensuring seamless compliance with global standards such as UL, CE, and 3C.

2.2 Multi-Transformer Matrix for Isolated Output Rails

To handle diverse internal loads, custom boards utilize a multi-transformer topology. Independent magnetic components isolate the high-power charging and motor circuits from sensitive control electronics, preventing high-voltage spikes or switching noise from disrupting the system MCU.

2.3 Thermal Management & Long-Life Component Selection

At the center of the board, vertical aluminum extrusion heatsinks are mounted directly to high-power MOSFETs and rectifiers. Paired with 105°C-rated, low-ESR bulk electrolytic capacitors, the board is built to withstand continuous high ripple currents and elevated internal ambient temperatures.

2.4 SMT Precision & Strict Creepage/Clearance Routing

On the SMT reverse side, high-voltage and low-voltage sections are strictly separated by clear isolation barriers and physical slots. Precise PCB layouts maintain necessary creepage and clearance distances, while designated mounting pads ensure secure structural alignment inside the plastic base chassis.

 3. Overcoming Key Engineering Challenges in Base Station Power Design

Designing a reliable power supply for wet/dry smart appliances presents unique engineering hurdles that require specialized manufacturing expertise.

3.1 Moisture, Condensation, and Conformal Coating

Because base stations process water during mop washing, internal humidity levels can be high. AiecoPower applies automated conformal coating over sensitive PCBA zones to protect components against moisture, dust, and environmental oxidation.

3.2 Dynamic Peak Load Handling & Voltage

Stability High-power vacuum motors and PTC heaters draw massive instantaneous surge currents when activated. Our power circuits are engineered with fast transient response loops to prevent voltage dips that could cause the robot’s MCU to reset or disconnect from Wi-Fi networks.

 3.3 Ultra-Low Standby Power Compliance

Robotic vacuums spend over 90% of their lifecycle docked in standby mode. To meet stringent international energy efficiency regulations (such as EU ErP / Energy Star), AiecoPower utilizes advanced PWM controller ICs that keep standby power consumption under 0.5W (and as low as 0.3W on select topologies).

3.4 Rigorous Safety Certifications & Insulation

Operating near water tanks with high AC input demands top-tier electrical safety. Every board design undergoes rigorous insulation testing, high-voltage withstand checks (Hi-Pot), and thermal stress analysis to satisfy global safety codes (UL62368, IEC/EN60335, and CCC).

4.Why Partner with AiecoPower for Custom Power Supply Manufacturing?

Selecting the right OEM/ODM power partner is critical for accelerating product development and maintaining product quality at scale.

4.1 End-to-End Turnkey Engineering

From initial schematic design, magnetic transformer winding, and thermal simulation to rapid prototyping and automated SMT assembly, AiecoPower offers complete custom power solutions tailored to your product roadmap.

4.2 Scalable Solutions for 60W to 500W+ Base Stations

Whether you are developing a compact charging dock or a high-end 500W+ all-in-one base station with hot-water washing and dust collection, our modular designs can be rapidly adapted to match your voltage and power requirements.

4.3 Strict Quality Control & DFM Optimization

Our automated manufacturing facilities incorporate SMT placement, dip soldering, 100% full-load burn-in testing, and automated optical inspection (AOI). We optimize for Design for Manufacturability (DFM) to keep your Bill of Materials (BOM) competitive while ensuring long-term field reliability.
